Hitachi Rail

Honolulu

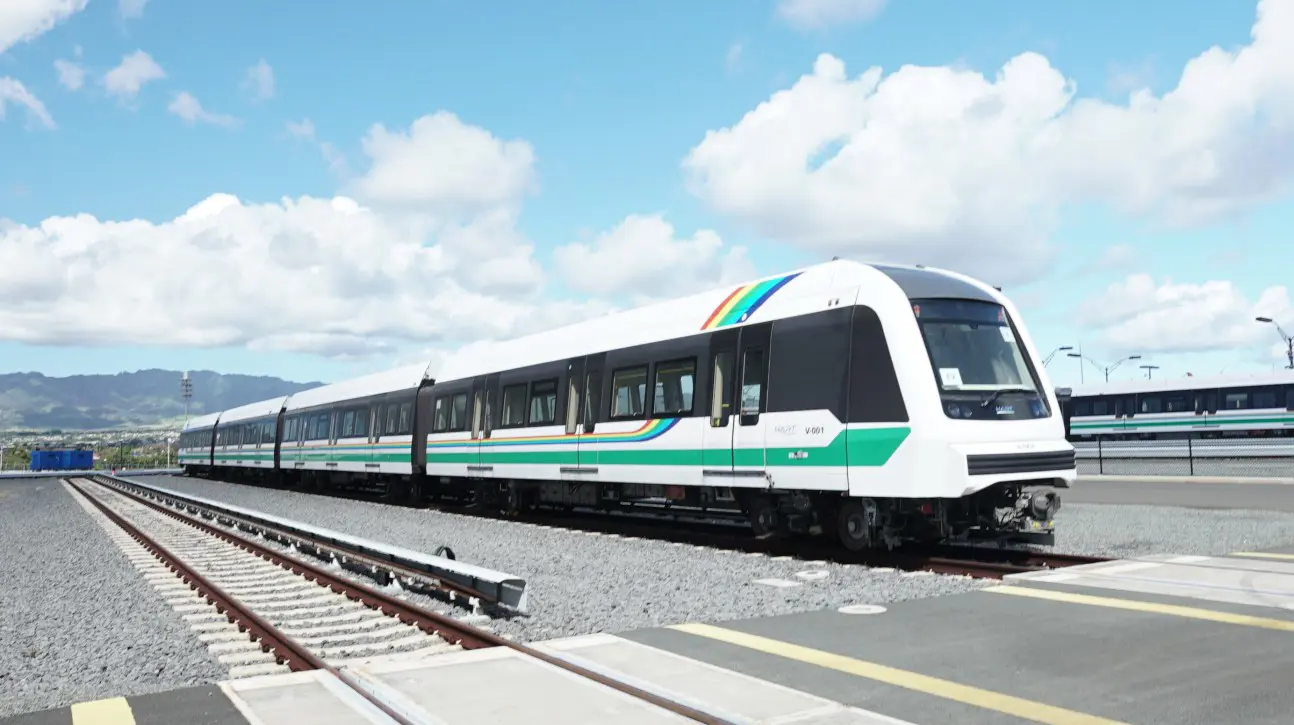

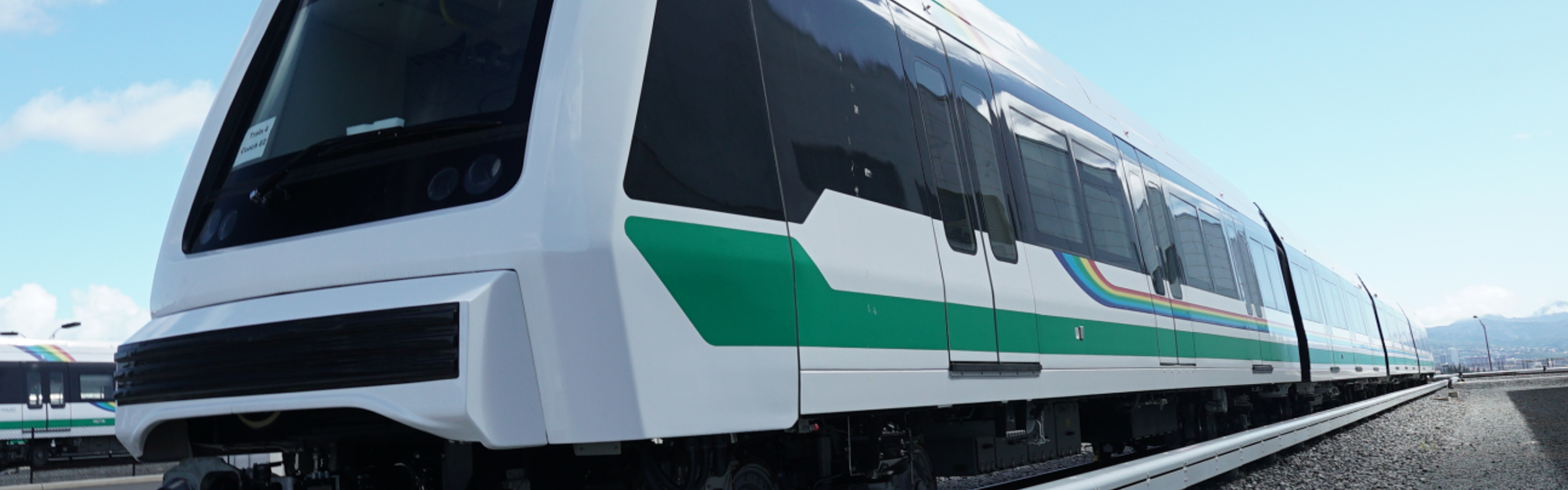

The new Honolulu metro represents a rolling stock and signalling systems project awarded to the Hitachi Rail group as a contract with HART (Honolulu Authority for Rapid Transportation) valued at over $1.3bn.

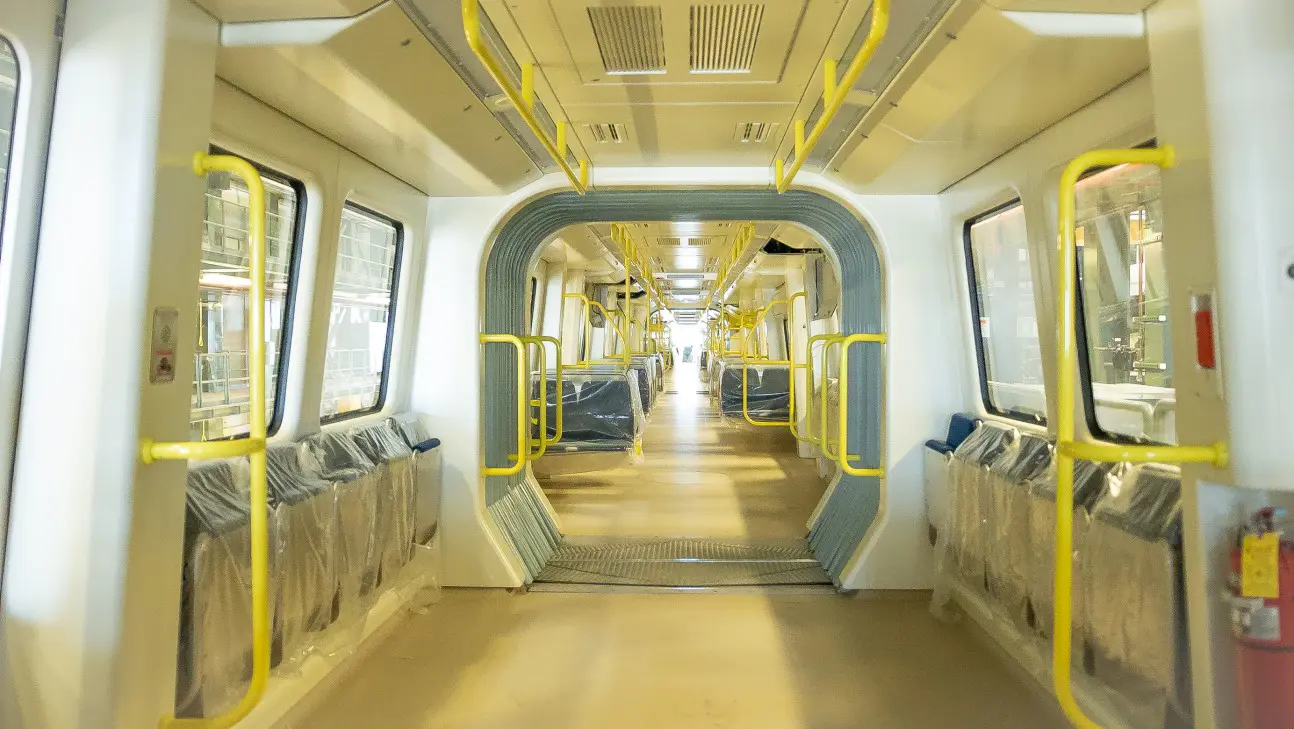

The vehicles designed by Hitachi Rail have been created to fulfil the requirements of both residents and tourists of the Hawaiian island. They have a capacity of over 800 passengers including 120 seats and 68 flip up seating options to give full flexibility.

    Technical Outline

    • Configuration: 4 Cars
    • Seats: 120 + 68 Flip Up
    • Standing Capacity (Train Comfort Load): 522
    • Doors Per Side: 3/Car
    • Maximum Length: 78200 mm
    • Maximum Width: 3048 mm
    • Maximum Speed: 105 km/h
    • Power Supply: 750 Vcc Third Rail
    • Rail Gauge: 1435 mm
    • Body Material: Aluminium
