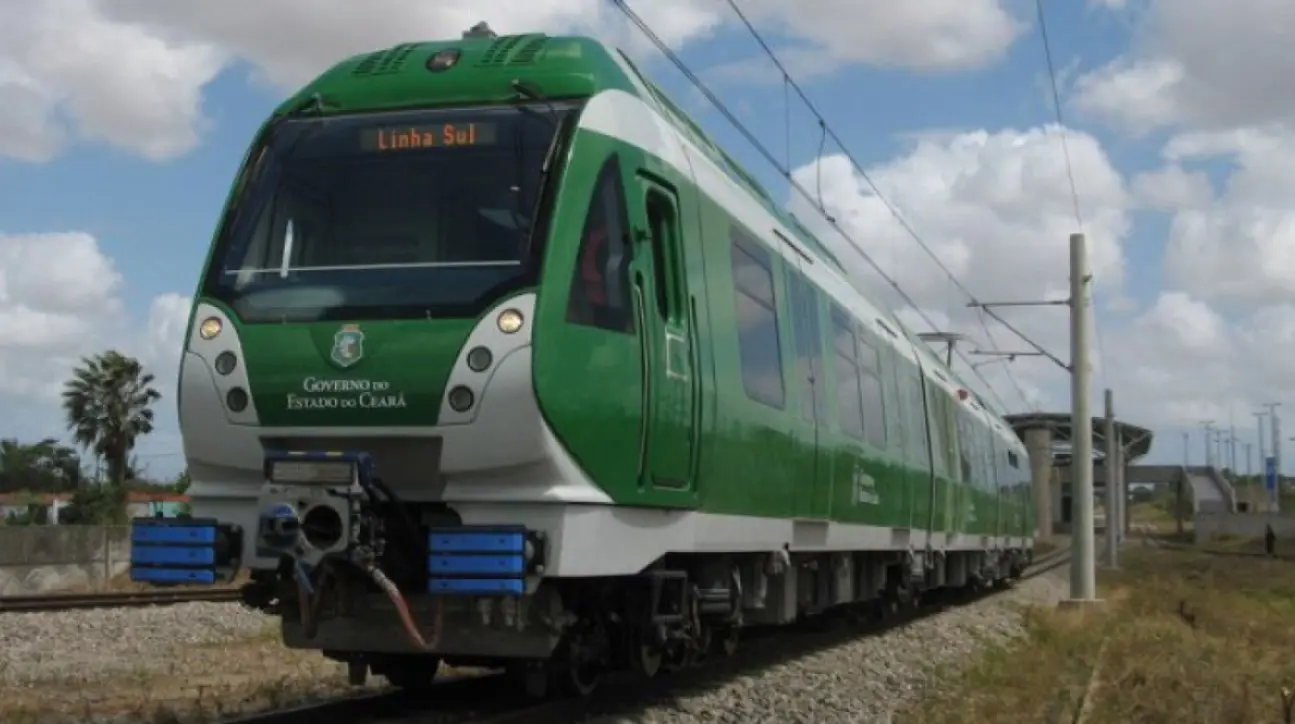

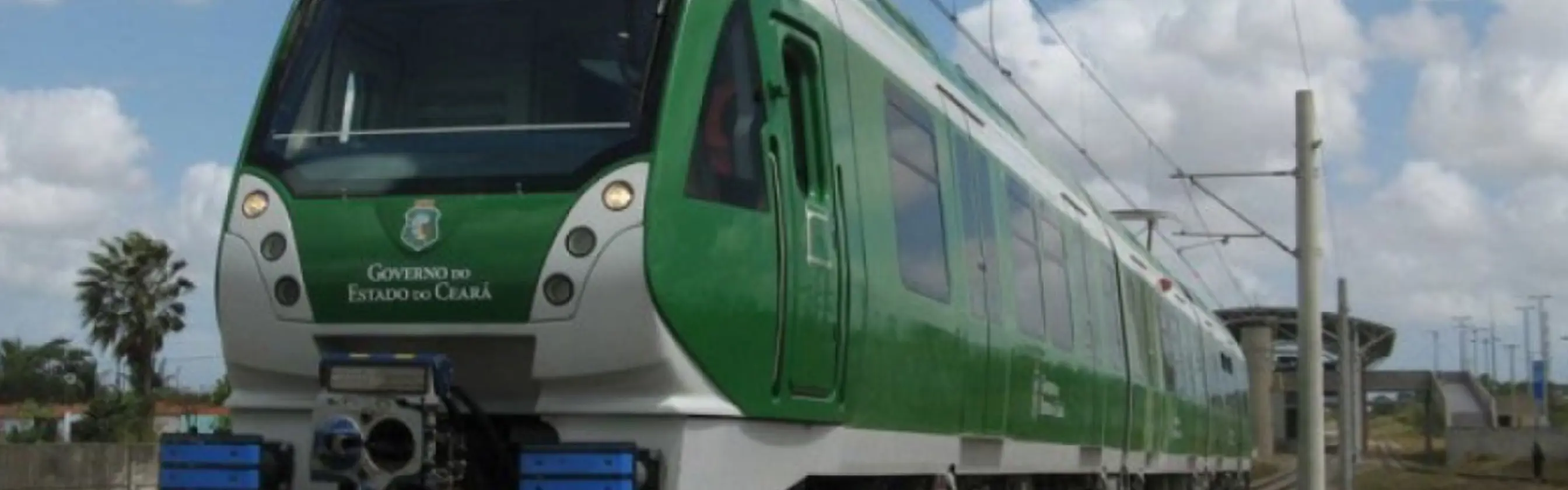

Fortaleza Metro

In 2009, Hitachi Rail signed a contract with SEINFRA, Secretaria da Infraestrutura do Estado do Ceará, for the delivery of 20 electric trains for Metro Fortaleza (Brazil).

In 2012 the client exercised the option for the delivery of an additional five vehicles, bringing the total supply to 25 electric trains.

The trains run on the South Line, a 23km metro line connecting the city centre with Maracanaù.

The air-conditioned trains are 40 metres-long and have a capacity of 445 passengers. The vehicles were delivered from December 2010 to May 2016, with entry into service from December 2010 and are currently in commercial operation.

Technical Outline

  • Configuration: 3 cars, Articulated
  • Seats: 48
  • Standing Capacity (6p/m2): 397
  • Doors per Side: 6
  • Maximum Length: 40000 mm
  • Maximum Width: 2650 mm
  • Maximum Speed: 120 km/h
  • Power Supply: 3000 Vcc Catenary
  • Rail Gauge: 1000 mm
  • Body Material: Aluminium
